ETM Armaturen Angle Globe Valve

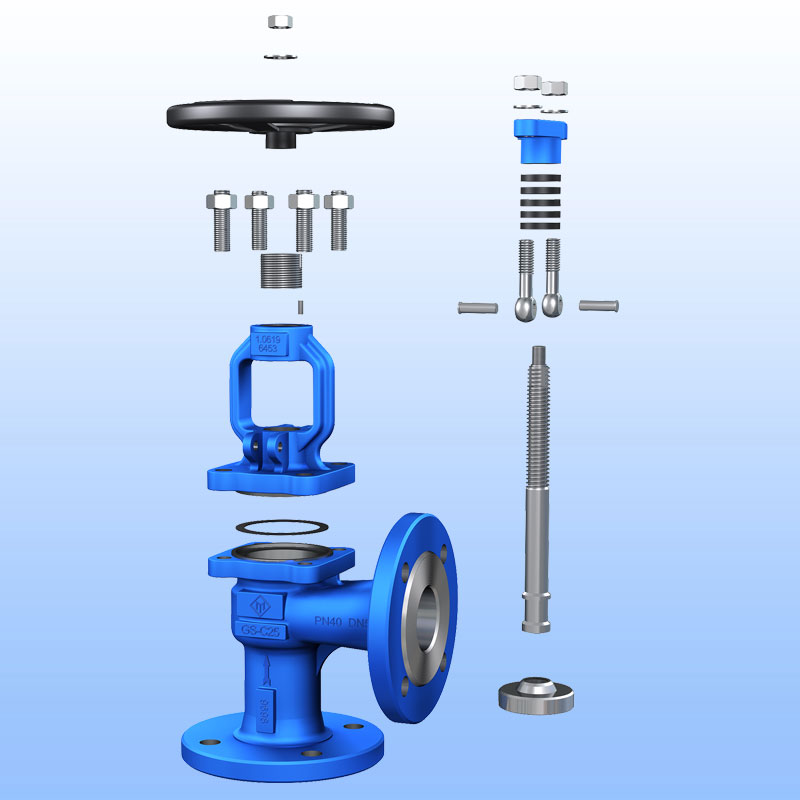

ETM Armaturen DIN Standard Angle Type Gland Packing Globe Valves
ETM Armaturen DIN Angle globe valve
ETM Armaturen DIN Angle stop valve
ETM Armaturen DIN Absperrventil Eckventil
ETM Armaturen DIN Válvulas de globo(Paso angular)
ETM Armaturen DIN Ventil uzavírací s klasickou ucpávkou rohový
ETM Armaturen DIN Standard seteventiler med pakkboks (Vinkel modell)
ETM Armaturen DIN DIN Standardında Salmastra Baskılı Glob Vana(Gönye Tip)
ETM Armaturen Van cầu chuẩn DIN (kiểu góc)

This ETM Armaturen globe valve can be used in Industry, Power stations, Flue gas purification plant, processing technology, gas supply,

vapor facilities, thermal oil applications, recycling facilities, vacuum facilities, ammonia, hot water, heating technology, district

heating, cooling and freezing systems, general plant manufacturing, steam systems.

This type valve is maintenance-free and like all ETM Armaturen valves - is classed leak rate “A” in accordance with EN 12266-1.

Products:
ETM Armaturen -FIGURE S-BS/EN Standard angle type gland packing globe valve PN 16 Bar with Flanges According to DIN EN 1092-1
ETM Armaturen -FIGURE S-BS/EN Standard angle type gland packing globe valve PN 25 Bar with Flanges According to DIN EN 1092-1
ETM Armaturen -FIGURE S-BS/EN Standard angle type gland packing globe valve PN 40 Bar with Flanges According to DIN EN 1092-1
ETM Armaturen -FIGURE S-BS/EN Standard angle type gland packing globe valve PN 16 Bar with Butt Weld Ends According to DIN EN 12627
ETM Armaturen -FIGURE S-BS/EN Standard angle type gland packing globe valve PN 25 Bar with Butt Weld Ends According to DIN EN 12627
ETM Armaturen -FIGURE S-BS/EN Standard angle type gland packing globe valve PN 40 Bar with Butt Weld Ends According to DIN EN 12627

Material Equivalence:
EN Material Name-----------------------EN Number ------------Forgings-----------------ASTM Material-------------------Forgings
EN 10213 GP240GH---------------------1.0619------------------1.0460-----------------ASTM A216 WCB-----------------A105
EN 10213 G20Mo5-----------------------1.6220------------------1.0437-----------------ASTM A352 LCB------------------A352 LF2
EN 10213 G17CrMo5-5------------------1.7357------------------1.7335-----------------ASTM A217 WC6-----------------A182 F11
EN 10213 G17CrMo9-10----------------1.7379------------------1.7380 ----------------ASTM A217 WC9-----------------A182 F22
EN 10213 GX5CrNi19-10----------------1.4308------------------1.4301-----------------ASTM A351 CF8-----------------A182 F304
EN 10213 GX5CrNi19-11-2-------------1.4408 -----------------1.4401-----------------ASTM A351 CF8M----------------A182 F316

Features:
Cast steel PN10 ,PN16,PN25,PN40– DN15 to DN400
Straight-through
Easy operating handwheel with safe operation at all working temperatures
Solid plug made of stainless material
Solid stem make of stainless material
Stem sealing in graphite Raised, turning stem
Back sealed stem Welded seat in stellite or Cr-steel
High-tensile Gland Packing Self adjusted gland
Flat Disc ,Parabolic & Regulation disc , Soft Seated Disc, Cone Disc, Stop Check Disc, Double Stage Disc & Balance Disc

Mediums:
Standard: Steam, gases, hot water, thermal fluids, hot oil, process water, etc.
Stainless Steel: Process water, aggressive media, etc.

Requirements and testing:
The test are carried out according to DIN EN12266-1
Shell test : nominal pressure (PN)X1.5
Tightness of seat :nominal pressure (PN)X1.1
Certificate of conformity in according to with PN-EN10204
Design according to PN-EN12516-2
Valves have been submitted for appraisal of conformity according to the directive pressure equipment directive 97/23/EC.

Installation:
They can be installed on pipelines in a vertical or horizontal and operation only
Direction of flow see body mark

Connection:
Butt-Welded according to DIN EN12627; Flanged according to EN1092-1 or to customer request
Face to face dimensions according to EN558-1 1 Series (DIN3202 F32 Series)

Operation:
Handwheel (If required)
Electric actuator
Gear box
Flange ISO5210 (Ready for actuator)
